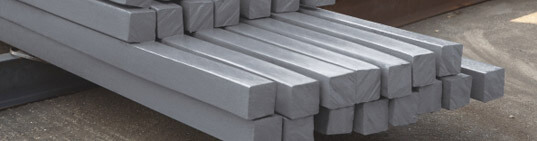

Mankrida Steel supplies a wide range of Mild Steel (MS) Square Bars. MS Square Bars are used in cranes gantry, bullock carts axles, conveyors, truck trailers and tippers, bright bars, anchor bolts and many more engineering industries.

Size in mm	Average Weight
	KG/MTR	KG/FT
10 x 10	0.80	0.20
12 x 12	1.10	0.30
14 x 14	1.50	0.50
16 x 16	2.00	0.60
17 x 17	2.27	0.69
20 x 20	3.14	1.00
25 x 25	4.90	1.50
32 x 32	8.00	2.40
40 x 40	12.60	3.80
42 X 42	13.85	4.22
50 x 50	19.60	6.00
53 X 53	22.05	6.72
56 x 56	24.60	7.50
63 x 63	31.20	9.50

Rolling Tolerances

Size Out of squareness Weight Length up to 25 mm ± 0.5 mm 25 mm to 35 mm ± 0.6 mm 35 mm to 50 mm ± 0.8 mm 50 mm to 80 mm ± 1 mm 80 mm to 100 mm ± 1.3 mm 100 mm and above ± 1.6 % of side width. ± 75 % of total tolerance Specified on the size. Size 10 to 16 mm ± 5 % 16 mm and above ± 3 % For fixed length : ± 100 mm

The data given above is indicative. Actual weights may vary. Mankrida Steel developes specific sections. Specific sizes in any section can be developed for economical and feasible quantity, in Mild Steel, High Tensile, En 8 / En 8D / EN 9 / EN 16 material.
