2379

C 1.54

Si 0.32

Mn 0.34

Cr 12.00

Mo 0.76

V 0.91

Mankrida Steels is the leading Supplier & Stockiest of Din 2379 Steel.
Din 2379 Consolidates maximum wear resistance, great durability, exceptional front line maintenance and treating resistance 12 % ledeburitic chromium steel. It can be nitrided after special heat treatment. It can be utilized as threading rolls and dies, icy trimming, cutting and stamping tools for sheet thickness's up to 6 mm, accuracy cutting instruments for sheet thicknesses up to 12 mm.

Steel Properties

DIN 2379 steel is Cold Work Steel with High Carbon High Chromium contents. The Quality with high wear resistant and toughness properties due to Vanadium addition of 0.90% . Normally it supply condition is an Annealed and will offer hardness to reach 57-59 HRC. It can be machinable in the annealed condition.DIN 2379 is the superior steels than D3 due to high alloys properties.

Physical Properties

Coefficient of thermal expansionat °C	20-100	20-200	20-300	20-400
10-6 m/(m*K)	10.6	11.5	11.8	12.3

Thermal Conductivity at °C	20	350	700
W/(m*K)	16.7	20.5	24.2

Application

DIN 2379 tool steel applicable for cold stamping or forming dies, cold forming rolls, Chipper knives, Punches, slitters, shear blades, tools, tyre shredders, trimming, cutting Threading Dies , stamping tools Etc.

Heat Treatment

Soft annealing °C	Cooling	Hardness HB
840 - 870	Furnace	max. 250

Stress-relief annealing °C	Cooling
approx. 660-710	Furnace

Hardening °C	Quenching	Hardness after quenching HRC
1000-1050	Air, oil or saltbath, 500-550 °C	63

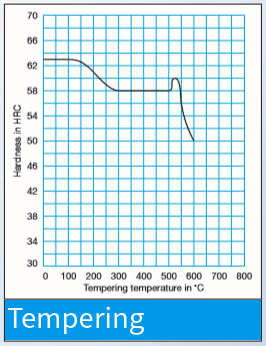

Tempering °C after quenching	100	200	300	400	500	525	550	600
HRC	64	61.5	58.5	58.5	59	60	57	50
