Angles

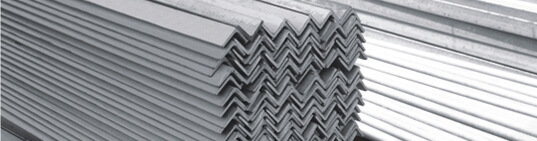

Mankrida Steel supplies a wide range of Mild Steel (MS) Angels. MS Angels are used for manufacturing of truck-trailers, EOT cranes and Gantry, escalators and elevators,ship building, factory sheds, bus body, communication and transmission towers, conveyors, boilers, agricultural equipment, and construction of bridges, scaffolding and many more fabrication and engineering industries.

Size in mm	Average Weight
	KG/MTR	KG/FT
25 x 25 x 3	1.10	0.30
25 x 25 x 4.5	1.60	0.49
25 x 25 x 5	1.80	0.50
25 x 25 x 6	2.10	0.60
30 x 30 x 3	1.40	0.40
35 x 35 x 3	1.60	0.50
35 x 35 x 4	2.10	0.60
35 x 35 x 5	2.60	0.80
37 x 37 x 3	1.70	0.50
40 X 40 X 3	1.80	0.055
40 x 40 x 4	2.40	0.70
40 x 40 x 5	3.00	0.90
40 x 40 x 6	3.50	1.10
45 x 45 x 4	2.70	0.80
45 x 45 x 5	3.40	1.00
45 x 45 x 6	4.00	1.22
50 x 50 x 3	2.30	0.70
50 x 50 x 4	3.00	0.90
50 x 50 x 5	3.80	1.20
50 x 50 x 6	4.50	1.40
50 x 50 x 8	5.84	1.78
55 x 55 x 4	3.30	1.00
55 x 55 x 5	4.10	1.30
60 x 60 x 4	3.70	1.10
60 x 60 x 5	4.50	1.40
60 x 60 x 6	5.40	1.64
65 x 65 x 4	4.00	1.20
65 x 65 x 5	4.90	1.50
65 x 65 x 6	5.80	1.80
65 x 65 x 8	7.70	2.40
65 x 65 x 10	9.40	2.90
65 x 65 x 12	11.80	3.60
70 x 70 x 7	7.38	2.25
75 x 75 x 5	5.70	1.70
75 x 75 x 6	6.80	2.10
75 x 75 x 8	8.90	2.70
75 x 75 x 10	11.0	3.40
75 x 75 x 12	13.1	4.00
80 x 80 x 6	7.20	2.19
80 x 80 x 7	7.90	2.90
80 x 80 x 8	9.60	2.90
90 x 90 x 6	8.20	2.50
90 x 90 x 7	9.50	2.90
90 x 90 x 8	10.80	3.10
90 x 90 x 10	13.40	4.10
98 x 98 x 9.5	13.09	3.99
100 x 100 x 6	9.20	2.80
100 x 100 x7	10.7	3.30
100 x 100 x 8	12.10	3.70
100 x 100 x 10	14.90	4.50
100 x 100 x 12	17.70	5.40
110 x 110 x 8	13.40	4.08
110 x 110 x10	16.50	5.03
110 x 110 x 12	19.6	5.97
130 x 130 x 8	15.9	4.85
130 x 130 x 10	19.7	6.01
130 x 130 x 12	23.4	7.13

Size in mm	Average Weight
	KG/MTR	KG/FT
45 x 30 x 4	2.23	0.68
45 x 30 x 5	2.75	0.80

Rolling Tolerances

Leg length Sectional weight Length Up to 45 mm : ± 1.5 mm 45 mm to 100 mm : ± 2 mm above 100 mm : ± 2 % 3 mm thickness : ± 5 % Over 3 mm thickness :+5/-3% For fixed length : ± 100 mm

The data given above is indicative. Actual weights may vary. Mankrida Steel developes specific sections. Specific sizes in any section can be developed for economical and feasible quantity, in Mild Steel, High Tensile, En 8 / En 8D / EN 9 / EN 16 material.
