Form of Supply
All sizes are available (both flat and round).
-
Call
+91 33 79657514
-
Whatsapp
+91-8777303485
-
D2
D2
HCHCR-D2
DIN 2379
AISI D2
AFNOR Z160CDV12
| C 1.54 | Si 0.32 | Mn 0.34 | Cr 12.00 | Mo 0.76 | V 0.91 |
Mankrida Steels is the largest Supplier & Stockiest of HCHCR D2 in India.
D2 Steel Consolidates maximum wear resistance, great durability, exceptional front line maintenance and treating resistance. 12 % ledeburitic chromium steel. It can be nitride after special heat treatment.
It can be utilized as threading rolls and dies, icy trimming, cutting and stamping tools for sheet thickness's up to 6 mm, accuracy cutting instruments for sheet thicknesses up to 12 mm.
Steel Properties
HCHCR-D2 steel is Cold Work Steel with High Carbon High Chromium contents. The Quality with high wear resistant and toughness properties due to Vanadium addition of 0.90% . Normally it supply condition is an Annealed and will offer hardness to reach 57-59 HRC. It can be machinable in the annealed condition. D2 is the superior steels than D3 due to high alloys properties.
Physical Properties
| Coefficient of thermal expansionat °C | 20-100 | 20-200 | 20-300 | 20-400 |
| 10-6 m/(m*K) | 10.6 | 11.5 | 11.8 | 12.3 |
| Thermal Conductivity at °C | 20 | 350 | 700 |
| W/(m*K) | 16.7 | 20.5 | 24.2 |
Application
HCHCR D2 tool steel applicable for cold stamping or forming dies, cold forming rolls, Chipper knives, Punches, slitters, shear blades, tools, tyre shredders, trimming, cutting Threading Dies , stamping tools Etc.
Heat Treatment
| Soft annealing °C | Cooling | Hardness HB |
|---|---|---|
| 840 - 870 | Furnace | max. 250 |
| Stress-relief annealing °C | Cooling |
|---|---|
| approx. 660-710 | Furnace |
| Hardening °C | Quenching | Hardness after quenching HRC |
|---|---|---|
| 1000-1050 | Air, oil or saltbath, 500-550 °C | 63 |

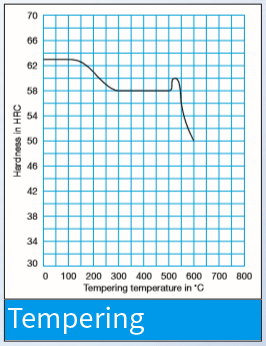

| Tempering °C after quenching | 100 | 200 | 300 | 400 | 500 | 525 | 550 | 600 |
| HRC | 64 | 61.5 | 58.5 | 58.5 | 59 | 60 | 57 | 50 |
